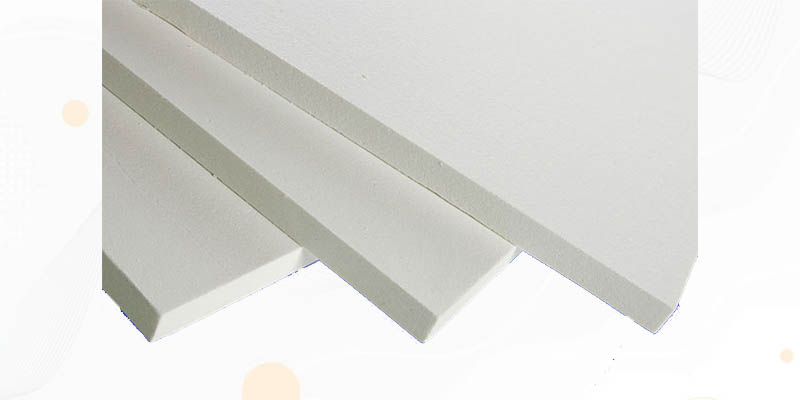

Ceramic Fiber Board

We manufacture high temperature insulating Fibre Boards and Shapes for use as back-up insulation or installed as hot face application solutions ranging from furnace linings to burner surrounds to hot tops. Thermal Ceramics manufactures in three chemistries Refractory Ceramic Fibre (RCF), Superwool® Low Biopersistent Fibre (LBP) and Polycrystalline Fibres (PCW).
High temperature insulating Fibre Boards and Shapes are typically used for thermal management and the customisation options are broad. We offer standard formulations, sizes and shapes typically found and required in the market. In addition, we have the capability to make custom forms to precise requirements.

Our range comprises three fibre grades:>

• Low Biopersistent Fibre(LBP)products boards and shapes made from our unique low biopersistence Superwool® fibre
• Refractory Ceramic Fibre (RCF) also known as Alumino Silicate Wool (ASW) boards and shapes made from Kaowool®, Cerafibre®, Cerachem® and Cerachrome®
• Polycrystalline Fibre (PCW) boards and shapes made from Alphawool® and Denka

LBP Fibres (Superwool®)

Our Superwool® Fibre Boards and shapes can be designed to be rigid, self-supporting insulation or manufactured into a flexible solution, with both providing exceptional performance-to-weight ratio and are resistant to most chemical attacks. Superwool® Fibre Boards and Shapes offer a potential for space savings of up to 50% thickness when replacing insulating firebricks or castables.
Our range of flexible Superwool® Fibre Boards and Shapes feature good dimensional resilience after compression and makes utilization very easy where rigid products are unsuitable. Superwool® is the only low biopersistence fibre available with a classification temperature of 1300°C (2372°F).
Superwool® is an engineered solution that is ideally suited as an alternative solution to RCF based fibres in some applications.

Benefits of Superwool® fibres are advantageous in many applications:

• Lower thermal conductivity over some RCF fibre materials resulting in an improved insulation performance by up to 20%
• Our Superwool® Plus fibres feature less shot resulting in a tighter fibre matrix
• Lower density grade of Superwool in place of an RCF material features a material weight savings up to 25%

RCF Fibres

All our RCF Fibre Boards and Shapes can be machined to tight tolerances to create standard shapes or custom designs to meet individual needs.
Kaowool® Fibre Boards and Shapes feature low thermal conductivity, excellent thermal shock resistance and low heat storage for effective energy savings. These Fibre Boards and Shapes are mechanically strong and dimensionally stable up to 1649°C (3000°F).
Cerafiber® Boards and Shapes are also resistant to chemical attack and thermal shock resistance. They are classified to 1400°C (2552°F) and perform exceptionally well in application with direct flame impingement.

PCW Fibres

Our PCW fibres are ideal for high temperature and chemically aggressive applications. These fibres are manufactured by sol-gel technology using processes specifically designed to produce fibres of defined dimensions.
Alphawool® and Denka boards and shapes are more resistant to acid and alkaline solutions than conventional alumino-silicate fibre products and have exceptionally good thermal insulation characteristics. They are classified to 1600°C (2912°F). They are both offered as rigid or flexible products.
Our advanced manufacturing processes allow us to make precise Fibre Shapes to meet customers’ exact application requirements; ranging from simple sections such as fibre boards, sleeves and cones to complex configurations. These products are used to protect equipment, conserve energy, and improve process performance in demanding high temperature applications such as:

• Furnace, kiln and oven hot face linings
• Insulation for appliances and equipment used in high temperature processing
• Combustion chambers, for domestic appliances
• Heat shields
• High temperature gaskets and seals
• Contact parts for non-ferrous metals processing including molten aluminium

We have the applications expertise to design, manufacture and install optimum thermal solutions for individual customer challenges. Contact us to discuss the requirements for your application.
